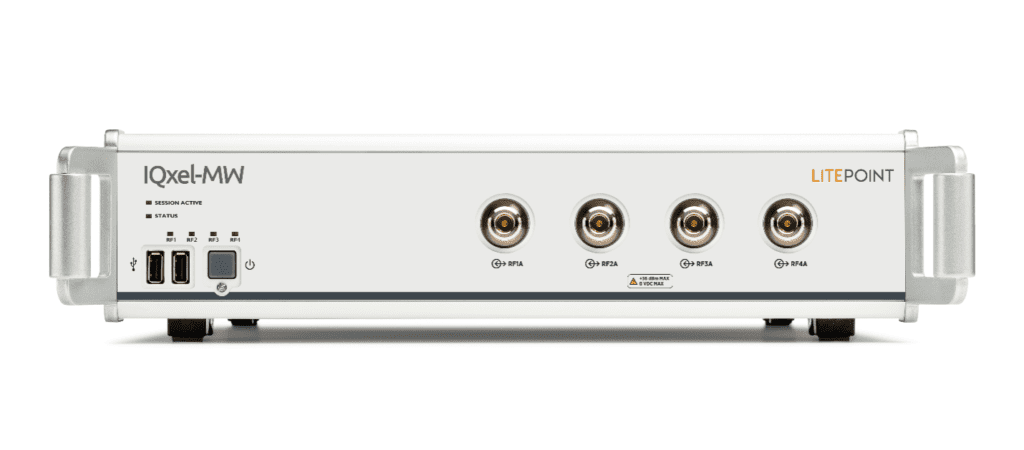

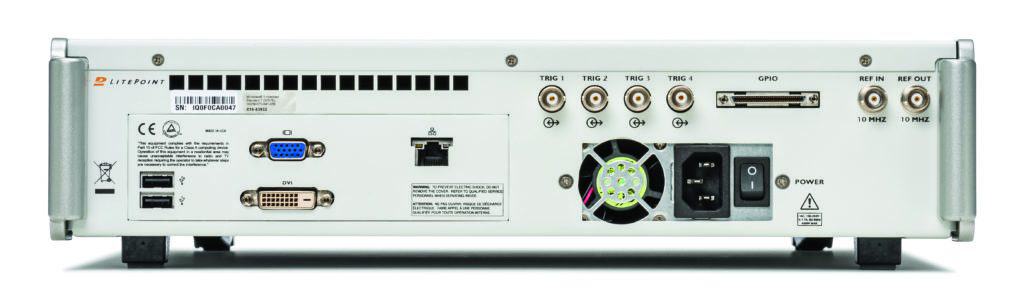

IQxel-M4W for Wi-Fi and Bluetooth® Testing

Wireless Connectivity and IoT Test System

All-in-one test platform for all your IoT WLAN, Bluetooth® and LPWAN connectivity testing needs

Suitable for the lab or manufacturing environment, the IQxel-M4W is ideal for RF testing of wireless connectivity and IoT products. The platform’s flexible software supports the most prevalent wireless connectivity standards: WLAN 802.11be (Wi-Fi 7), Wi-Fi 6/6E, legacy (802.11a/b/g/n/ac), Bluetooth® (1.0 – 4.x), Bluetooth 5.x AoA and AoD, Bluetooth® Channel Sounding, as well as Zigbee/Thread, Z-Wave, LPWAN technologies (Sigfox, LoRa), and navigational technologies. With a library of hundreds of major wireless chipsets, LitePoint’s IQfact+™ software combined with the versatility of the IQxel-M4W platform deliver a solution that accelerates your time-to-market while minimizing the total cost of testing.

Multipurpose wireless tester supports the widest range of wireless connectivity technologies

  • All RF signal generation, analysis, processing in a single compact 2U form factor
  • Flexible hardware configurations supporting frequency range from 400 MHz to 6 GHz and 400 MHz to 7.3 GHz
  • Flexible and comprehensive software support for the most popular wireless connectivity standards
  • Intuitive GUI enables easy setup, custom test flow and optimization
  • Superior measurement accuracy performance for product testing spanning R&D, DVT and manufacturing test environments

Turnkey Chipset-Specific Test Solutions

  • Backed by a library of hundreds of major wireless chipsets, LitePoint’s IQfact+™ software harnesses the IQxel-M4W’s power to deliver a total solution that accelerates your time-to-market while minimizing the total cost of testing
  • Years of partnership with chipset companies means LitePoint products perform the most efficient testing possible and leverage unique, optimized calibration routines that reduce test times

Multi-Device Production Testing

  • Parallel testing on up to four devices through fully-integrated signal generator and analyzer
  • With embedded intelligent scheduling capability to realize dramatic throughput increases compared to single-device systems
  • Rugged and compact 2U-high chassis design fits in a standard 19” rack
  • Direct cable connections from tester to fixture, automatic configuration and simple fixture calibration free up precious factory floor space and reduce operational expenses

Technology Options: WLAN, Bluetooth®, LPWAN, Cellular, Navigation

  • Wi-Fi, 802.11be (Wi-Fi 7)
  • Wi-Fi, 802.11ax (Wi-Fi 6/6E)
  • Wi-Fi, 802.11ac (Wi-Fi 5)
  • Wi-Fi, 802.11a/b/g/j/n/p
  • Wi-Fi, 802.11af
  • Wi-Fi, 802.11ah (HaLow)
  • Wi-Fi, 802.11az Next Generation Positioning (NGP)
  • Wi-Fi, 802.11ba Wake Up Radio (WUR)
  • Bluetooth® Classic/EDR (1-4.x), Low Energy (4.0, 4.1, 4.2), Bluetooth® (5.0, 5.1, 5.2, 5.3) and Bluetooth Channel Sounding
  • Zigbee, Thread, Z-Wave and Wi-SUN
  • DECT
  • LPWAN: Sigfox, LoRa
  • Navigation: GPS, GLONASS, Compass and Galileo
