z488xx RF Switches/Multiplexers (Discontinued)

Features

• Wide frequency range up to 6 GHz
• High performance solid state switches
• Automatic termination of unused switch/multiplexer ports
• High isolation
• SMA coaxial connectors

Products

Advantages

z47524

• Very low insertion loss
• Suitable for handling signals from DC to 2.5 GHz

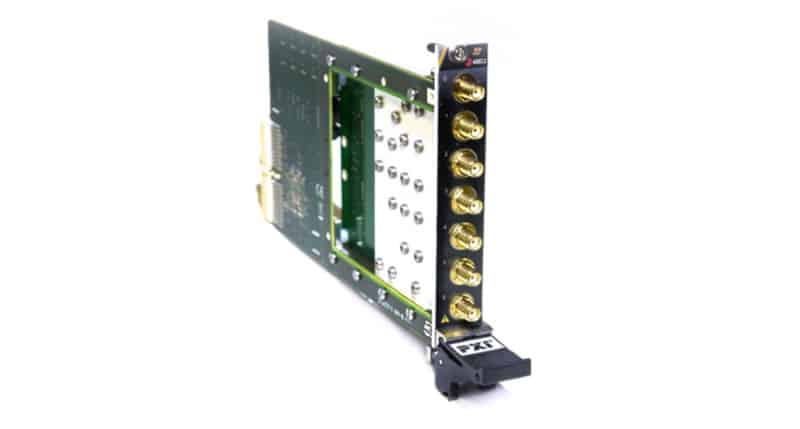

z48801, z48811, z48821, z48822

• Low VSWR characteristic over the full operating frequency range
• Consistent insertion loss characteristics
• Solid state switches ensure a long service life with no wear out mechanism, ideal for ATE systems requiring frequent and fast operating RF switching with no contact bounce

z48831, z48832

• Low VSWR over the full operating frequency range
• Consistent and flat insertion loss characteristics
• Solid state switches ensure a long service life with no wear out mechanism, ideal for ATE systems requiring frequent and fast operating RF switching
• Handle RF input powers of up to +30 dBm, sustain frequent hot switching without performance degradation

z48841

• Solid state microwave matrix, which can operate to frequencies beyond 6 GHz and handle RF powers to +30 dBm
• Supports up to four point to point connections across the matrix simultaneously
