IQxstream® is a multi-device cellular communication test solution for precise calibration and verification of 2G/3G/4G smart devices like smartphones, tablets, data cards, cellular modules and small cell base stations.

IQxstream’s flexible architecture makes it highly suitable for high volume manufacturing test environments.

Comprehensive Mobile & IoT Test Coverage

  • Supports a continuous frequency range between 400 MHz and 3800 MHz
  • Provides physical layer non-signaling test coverage for LTE-Advanced / LTE-Advance Pro devices and IoT modules.
  • Supports physical layer TX and RX measurements for 3G and 4G small-cell devices.
  • Supports arbitrary waveform playback into the DUT for uplink signal analysis
  • Facilitates waveform-based Navigation test

Flexibility to Meet Your Needs

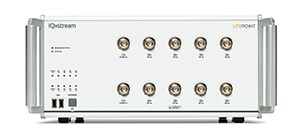

  • Available in two hardware configurations (5-port and 10-port) for single device, multi-device, and/or MIMO testing
  • Asynchronous Parallel Test (APT) mode enables device testing that can start and stop independently of other devices in the same test station
  • The one-box design reduces external cabling to provide a simplified and highly reliable solution for production test

Cellular, IoT and Connectivity Technology Options

  • LTE TDD / FDD
  • LTE-Advanced
  • W-CDMA HSPA / HSPA+
  • CDMA / CDMA2000
  • TD-SDCMA
  • GSM / EDGE
  • LTE IoT UE categories Cat 1, Cat 0 (Cat M1) and Cat NB1 (NB-IoT)
  • WCDMA Small Cell (Femtocell, Picocell)
  • LTE Small Cell (Femtocell, Picocell)
  • Wi-Fi, 802.11a/b/g/n
  • Wi-Fi, 802.11af
  • Bluetooth, Classic (1.x, 2.x, 3.0), Low Energy (4.0, 4.1, 4.2) and Bluetooth 5
  • Zigbee, Z-Wave and Wi-SUN
  • DECT
  • LTE
  • LPWAN, Sigfox / LoRa
  • Navigation (carrier-to-noise): GPS, GLONASS, Compass

When & Where to Use the IQxstream for Testing?

  • In manufacturing environments
  • For products in the PCB-level manufacturing, RF modules or end-of-line manufacturing lifecycle stages
  • For mobile or IoT devices
