z3985 Embedded Controller

Embedded Controller for 3U PXI™ Express Systems
z3985

The z3985 Embedded Controller, based on the fourth generation Intel Core i7 processor, is specifically designed for hybrid PXI Express-based testing systems, delivering maximum computing power for a wide variety of test and measurement applications.

Combining state-of-the-art 2.4 GHz quad-core Intel Core i7-4700EQ processors (3.4 GHz maximum in single-core, Turbo Boost mode), and 16 GB of 1600 MHz DDR3L memory, the z3985 utilizes four separate computing engines on a single processor, enabling execution of numerous independent tasks simultaneously in a multi-tasking environment. With a configurable PCIe switch, the z3985 can support four links x4 or two links x16 and x8 PXI Express link capability, with maximum system throughput of up to 8 GB/s.

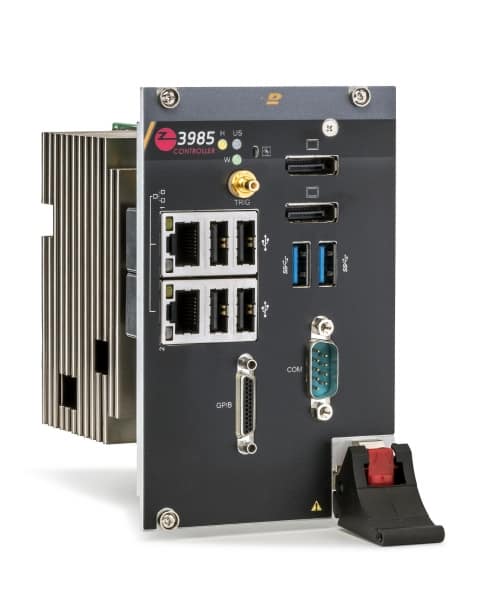

The LitePoint z3985 Embedded Controller provides ample front-panel interface options for hybrid PXI-based test systems control including:

  • 2 DisplayPort connectors allowing connection to 2 monitors
  • Dual USB 3.0 connections for high speed peripheral devices
  • 4 USB 2.0 ports for peripheral devices and USB instrument control
  • Dual Gigabit Ethernet ports for LAN connections and controlling LXI instruments
  • Micro-D GPIB connector for GPIB instrument connection

Advantages

LitePoint Embedded Controller Comparison

Specification z3985 PXIe z3975 PXIe
Processor Intel Core i5-520E
2.4 GHz (dual core)
Intel Core i7-4700EQ
2.4 GHz (quad core)
Memory 4 GB DDR3, 1066 MHz 16 GB DDR3L, 1600 MHz
Hard Drive 160 GB SSD 240 GB SSD
Video 1 DVI 2 DisplayPort
Ethernet 2 Gigabit 2 Gigabit
USB 4 USB 2.0 4 USB 2.0, 2 USB 3.0
GPIB 1 micro-D 1 micro-D
Trigger I/O 1 SMB 1 SMB
ExpressCard 1 ExpressCard/34 slot N/A
Serial N/A 1 RS-232-/422/485 D-SUB9
Operating System Windows 7 x32/x64 Windows 7 x64

Applications

  • Embedded processing controller for zSeries wireless test sets
  • Preloaded with LitePoint software and configured for instant out-of-the-box test and measurement applications
