z8820 DC Power & Digital IO Controller (Discontinued)

DC Power Supplies & Digital Control

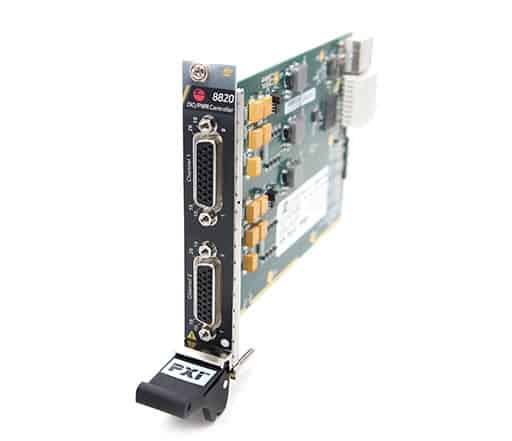

The z8820 PXIe DC Power & Digital IO Controller Module is a single-slot 3U PXIe module that supports remote instrumentation and electronics outside the PXI chassis.

It uses a PCI Express (PCIe) Gen1 x1 lane to interface to the PXIe host computer.PCIe read/write operations provide access to the z8820 on-board resources and to digital I/O or SPI interfaces to remote electronics. The z8820 PXIe module supports up to two remote interfaces via two D-sub 26-pin connectors. Each remote channel connector provides eight digital I/O (DIO) signals and three power supply rails (+6V, +9V and -13V). The external power supply rails have voltage/current monitors that can also be used as over/under trip protection. The z8820 also has a programmable clock generator circuit to provide up to three programmable digital clocks for the SPI master circuit and for user signals on the DIO or backplane outputs.

Configurations

Frequently used with:

  • Remote electronics and load boards
  • Remote instruments including z8812 Port Module
