zSignal™ 802.11ax (Wi-Fi 6) software license adds transmit quality analysis and waveform creator support for the next generation High Efficiency WLAN standard.

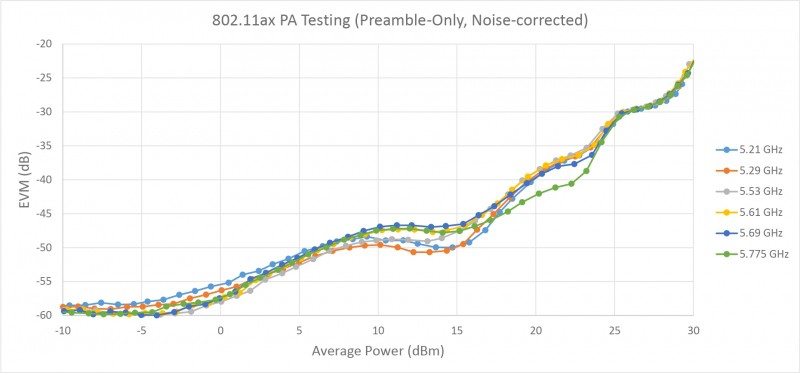

This 802.11ax (Wi-Fi 6) software augments LitePoint’s zSignal™ WLAN license for 802.11 a/ac/af/ah/b/g/j/n/p. In combination with LitePoint’s zSeries Test Solutions, typical equipment EVM floors for 802.11ax 80 MHz (HE80) are <-50 dB (preamble-only).

Advantages

  • Compliant with latest 802.11ax (Wi-Fi 6) standard from IEEE working group, with updates available as standard evolves
  • Validated interoperability with 802.11ax WLAN chipsets

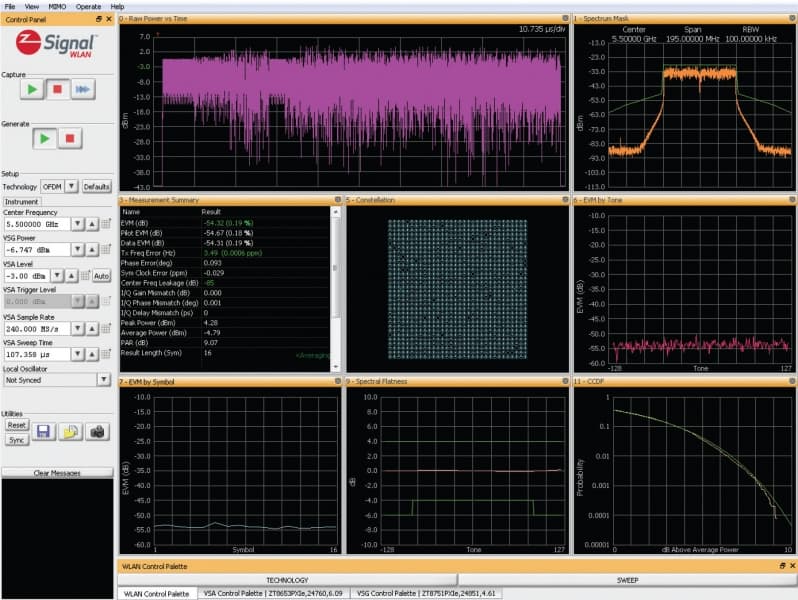

  • Comprehensive WLAN measurements including Power versus Time, EVM, spectral mask, spectral flatness, EVM by symbol, EVM by tone, CCDF, amplitude deviation versus symbol and other TX Quality measurements
  • Augments LitePoint’s zSignal WLAN license for 802.11a/ac/af/ah/b/g/j/n/p
