zSeries PA/FEM

Power Amplifier/Front-End Module Design Test Solution

zSeries PA/FEM is a fully-integrated hardware and software test solution combining 7.2 GHz VSG/VSA for accurate characterization and testing of the existing and the latest Wi-Fi standard 802.11ax PA/FEM components for use in mobile devices.

Covering wide measurement bandwidths useful for digital pre-distortion (DPD) testing, the FEM solution guarantees low noise and distortion necessary for validating the high efficiency Wi-Fi 6 1024QAM devices.

Meeting the exponential rise in the number of Wi-Fi capable devices in the market, the zSeries offers reduced time-to-test from weeks to hours or days.

Advantages

  • Lab-in-a-Box configuration
  • Seamless hardware and software enhancements using a modular PXIe platform
  • Reduce time-to-test from weeks to hours or days
  • Test apps to setup complex tests for PA/FEM characterization and design verification without code

Advanced Software Integration Tools & Support

  • Graphical User Interfaces (GUI) for real-time “bench-top” interactive operation for RF designers and field application engineers
  • Support for C/C++, LabVIEW, Matlab, TCL and Python programming environments with example code and projects
  • DPD capabilities for rapid PA linearity characterization
  • Envelope Tracking characterization measurements for power efficiency maximization

All solutions are adaptable and re-configurable to provide you with the greatest flexibility for your testing requirements.

Key Specifications

  • Best-in-industry residual EVM performance: <-50 dB, required for 802.11ax PA/FEM tests
  • Multi band support 2.4 GHz, 5 GHz, U-NII-4/5/6/7/8 with comprehensive range of operation from 250 MHz to 7.2 GHz
  • Supports 1 GHz-wide instantaneous bandwidth for testing
  • 20 GHz spectrum analyzer extension for harmonic and spurious emission testing
  • Advanced testing including Noise Reduction and Envelope Tracking

Configurations

Core Modules

  • z8752 Vector Signal Generator
  • z8655 Vector Signal Analyzer
  • z8817 Front-End Module

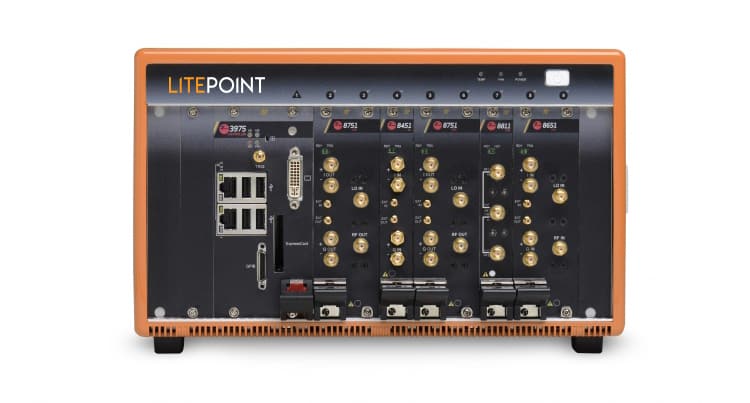

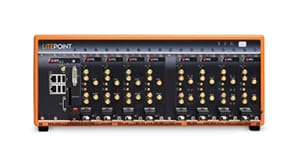

  • zSeries 9-slot or 18-slot chassis
  • z3975/z3985 Embedded Controller (Intel Core i5/i7 processor)
  • z475 Remote DC Power Supply
  • z8820 DC Power & Digital IO Controller
  • z8801 Local Oscillator
  • z4441 Digitizer/Oscilloscope
  • z5211 Arbitrary Waveform Generator
