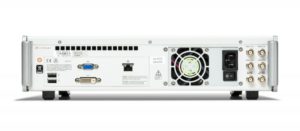

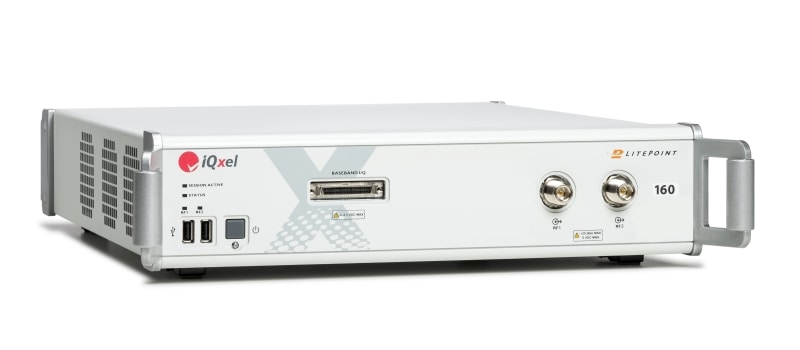

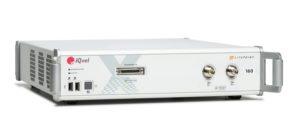

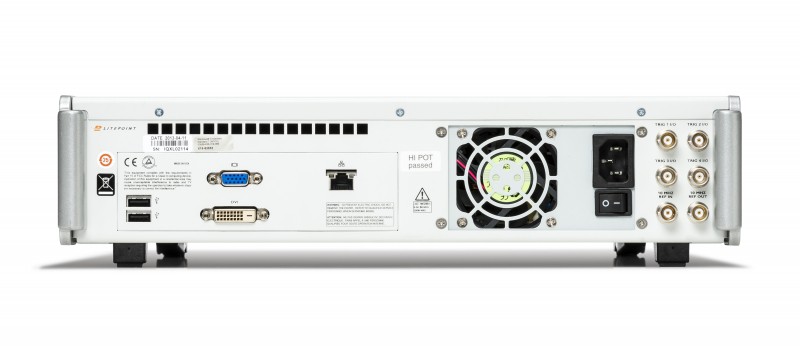

IQxel-80 / IQxel-160

Industry reference 802.11ac wireless connectivity test systems
IQxel

IQxel

IQxel

IQxel™ is a one-box connectivity test system enabling physical layer wireless test coverage of WLAN and Bluetooth enabled devices. The IQxel is available in two configurations, 80 MHz or 160 MHz, which enables high-performance testing of 802.11ac-enabled wireless devices.

Seamless Transition to 802.11ac Testing

  • Maintains ability to run 802.11a/b/g/n test programs
  • Allows re-use of existing test scripts and software developed on IQview®, IQflex® and IQ201X™ testers
  • Leverages LitePoint’s extensive IQfact chipset calibration and verification software library

Flexible MIMO Test Solution

  • True MIMO technology testing supported with independent, non-correlated signals
  • Use single or multiple, synchronized IQxel units
  • Flexible architecture allows MIMO needs to be scaled

Optimized for the Lab or Manufacturing

  • Rugged design built for high volume device manufacturing environments
  • Fully calibrated RF connections simplifies manufacturing test and ensures best possible measurement accuracy
  • Compact 2U-high chassis takes a minimum of space in equipment racks
  • Easy to deploy–fully integrated processing capabilities mean minimal data transfer times and no external PC controllers or software

Technology Options

  • Wi-Fi, 802.11ac
  • Wi-Fi, 802.11a/b/g/j/n/p
  • Wi-Fi, 802.11ah
  • Bluetooth, Classic (1.x, 2.x, 3.0), Low Energy (4.0, 4.1, 4.2) and Bluetooth 5
  • Supports all combinations of 802.11ac channel bandwidths: 80, 80+80 and 160 MHz
  • Supports differential analog I and Q signals I/O for baseband test applications

When & Where to Use the IQxel for Testing?

  • For lab or manufacturing environments
  • For products in the product characterization or PCB-level manufacturing lifecycle stages
  • For 802.11ac-enabled networking, computing, gaming and IoT devices

Software

IQfact+

A family of specialized software tools designated to analyze the wireless capabilities of commonly utilized integrated wireless chipsets. Watch this IQfact+ Demo to learn more.
